Effortless and fast rewinding, wrapping, and guiding of hose.

Chain and sprocket drive powered by electric, hydraulic, or compressed air motor.

Auxiliary crank rewind optional.

12v rewind, comet brake standard.

Air brake optional.

5100 series: 90° ball bearing swivel joint, 1-1/2" female NPT threads, 2" victaulic® groove, flanged riser with 1-1/2" female NPT threads.

5200 series: 90° ball bearing swivel joint, 2" Victaulic® groove, flanged riser with 2" female NPT threads.

Inlet and hub assembly are aluminum.

Joint and riser ductile iron for petroleum fuel.

Pressures to 600 psi (41 bar).

Temperatures from -30° F to +250° F (-34° C to +121° C).

Standard with a reduction unit only. Electric clutch units optional.

Consult factory for other pressures and temperatures.

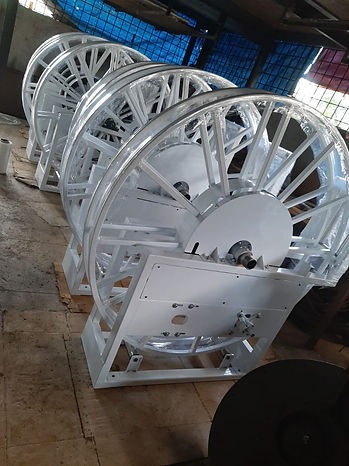

Model shown in image above represents standard configuration with inverted instillation
