PNEUMATIC OIL CONTROL GUN & PUMP

SP have a wide range of pneumatic oil pumps that offers an appropriate solution for any kind of fluid viscosity, required delivery, pumping distance, necessary outlet pressure, ambient temperature as well as for simultaneous fluid supplies and any type of storage container. Pneumatic oil control gun, grease pump and grease gun manufacturers and suppliers in Mumbai, India to worldwide in low price pneumatic pumps and guns for sale since 1996 as per the ISO standards with safety, reliability and durability.

In the following charts the essential data for selecting the adequate pump for the individual requirements are shown.

These pumps are recommended for the use

- at pumping distances up to 15 m,

- With low viscosity fluids.

These pumps are recommended for the use

- at pumping distances up to 100 m,

- With low and medium viscosity fluids.

These pumps are recommended for the use

- at pumping distances up to 200 m,

- With low viscosity fluids.

- with high viscosity fluids at shorter pumping distances.

Legends :

The SP oil pump range is completed by the industrial pump series “Power Bull” with high delivery pumps for the supply of fluid lubricants in demanding conditions. These pumps are particularly recommended for the distribution of medium or high viscosity oils in applications or pipeworks where a simultaneous supply in different distribution points at high pressure and high delivery is required. The elevated quality of the used materials and the innovative constructional concept of the pneumatic motors of this line assure the following characteristics and advantages:

- Efficiency of a constant flow,

- Low noise level,

- Limited number of piston strokes,

- Low vibrations,

- Easy maintenance and interchange ability of components,

- Included overpressure and control valve,

- Included drain device for condensation water in order to avoid a spraying into the surrounding area.

In the following charts the essential data for selecting the adequate pump for the individual requirements are shown.

These pumps are recommended for the use

- To acheived high deliveries in the use with low viscosity (Model No: SP-POP-2013),

- For use with low and medium viscosity fluid at pumping distance of more than 300m (Model No: SP-POP-2012 and 2016),

- For simultaneous fluid supplies

Industrial Pump Series "Power Bull" Single Acting Model

These pumps are recommended for the use

- To acheived high deliveries in the use with low viscosity (Model No: SP-POP-2098),

- For use with low and medium viscosity fluid at pumping distance of more than 300m,

- For use with high viscosity fluid at long pumping distance (model. No. SP-POP-2055, 2056, 2096,2097),

- For simultaneous fluid supplies

Industrial Pump Series "Power Bull" Double Acting Model

These pumps are recommended for the use

- To acheived high deliveries in the use with low viscosity fluids,

- For use with low and medium viscosity fluid at pumping distance of more than 300m,

- For use with high viscosity fluid at long pumping distance,

- For simultaneous fluid supplies

Legends :

PNEUMATIC PISTON OIL PUMPS COMPRESSION 1:1

Pneumatic pumps for the transfer of low viscosity oils and antifreeze at high delivery and short pumping distances.

Model No:SP-PPOP-2043 - Waste Oil

Model No:SP-PPOP-2049 - Pure Antifreeze

Model No:SP-PPOP-2043/L - Oil

Model No:SP-PPOP-2047/I - Pure Antifreeze

Model No:SP-PPOP-2040 - Oil

Model No:SP-PPOP-2044 - Oil

Model No:SP-PPOP-2047 - Pure Antifreeze / Waste Oil

OPTIONAL Maintenance advise :

It is recommended to use rubber hoses with a diameter of min. ¾ for a continuous use of the pump it is treatment unit, composed of Pressure regulator with manometer and moisture separator or Pressure regulator with manometer, moisture separator and Lubricator at the compressed air inlet of the pump. Any installed valves, Curves, filters, ball valves or flow meters will reduce the delivery of the pump.

The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22oC –Compressed air pressure 8 bar – free flow outlet.

PNEUMATIC PISTON OIL PUMPS COMPRESSION 3:1

Pneumatic pumps for the supply of low and medium viscosity oils and antifreeze for the use in mobile kits or in pipeworks.

Model No:SP-PPOP-2032 - Oil

Model No:SP-PPOP-2033 - Pure Antifreeze

The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22oC –Compressed air pressure 8 bar – free flow outlet.

PNEUMATIC PISTON OIL PUMPS COMPRESSION 5:1

Pneumatic pumps for the supply of low and medium viscosity oils and antifreeze for the use in mobile kits or in pipeworks.

The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22oC –Compressed air pressure 8 bar – free flow outlet.

PNEUMATIC PISTON OIL PUMPS SERIE TWDE

Pneumatic oil pumps with double compressed air outlet distributor, assuring higher delivery rates compared to the standard versions

The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22oC –Compressed air pressure 8 bar – free flow outlet.

PNEUMATIC PISTON OIL PUMPS SERIE MID

Pneumatic pumps for the supply of oils, approved for legal transactions according to the European Directive 2014/32/EU, better known as Measurement Instrument Directive MID MI-005, comply with the requirements.

Model no. SP-PPOP-2050 – 2051

Automatic air separator kits, suitable to separate the air eventually present in the suction line from the oil, available with (=model no. 2051) or without (model no. 2050) automatic pump stop device, approved according to OIML R117-1; includes also manometer for the control of the outlet pressure and non-return valve.

By installing the air separator at the fluid outlet of a pump can be achieved the working conditions needed to meet the requirements of the directive MID MI-005 in combination with an oil flow meter that must also be approved for legal transactions.

Model no. SP-PPOP-2023 – 2063

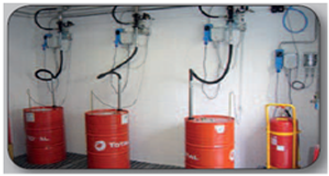

Double action pneumatic pumps, for the mounting directly in 208l-drums (model no.2023, based on pump model no 2020) or as wall-mounted pumps kits (model no. 2063, based on pump model no 2032) with air separator kit. Model no. 2050 (without automatic pump stop) according to OIML R117-1, approved for the use in legal transactions.

Model no. SP-PPOP-2024 – 2064

Double acting pneumatic pumps, fo the mounting directly in 208 l –drums (model no 2024, based on pump model no. 2020) or as wall mounted pumps kits (model no. 2064, based on pump model no. 2032) with air separator kit model no 2051(with automatic pump stop, stopping the pump as soon as air is sucked into the suction line due to an empty drum or tank) according to OIML R117-1, approved for the use in legal transactions.

PNEUMATIC PISTON OIL PUMPS SERIE TAPIR

Pneumatic pumps for the supply of medium and high viscosity oils for the use in mobile kits or in pipeworks

The a.m. performance values are based upon the following test conditions: Hydraulic oil ISO 32 at 22 ̊C –Compressed air pressure 8 bar – free flow outlet.

PNEUMATIC PISTON OIL PUMPS DOUBLE ACTING DRUM PUMPS

Heavy duty pneumatic pumps, industrial pump series “Power Bull”, designed for the supply of oil under demanding conditions. Particularly suitable for the oil distribution in pipeworks and installations where a simultaneous supply of oil is required on different dispensing points at high pressure and /or with a high delivery

Model no. 7180/12 & Model no. 7150/12

Optional Maintenance advise:
In order to avoid a slowing-down or even a blocking of the pump due to a freezing of generated condensation water closing the air outlet of the motor, we recommend the installation of the above shown air treatment units at the compressed air connection of the pump.

PNEUMATIC PISTON OIL PUMPS SINGLE ACTING WALL MOUNTED PUMPS

PNEUMATIC PISTON OIL PUMPS SINGLE ACTING WALL MOUNTED PUMPS
